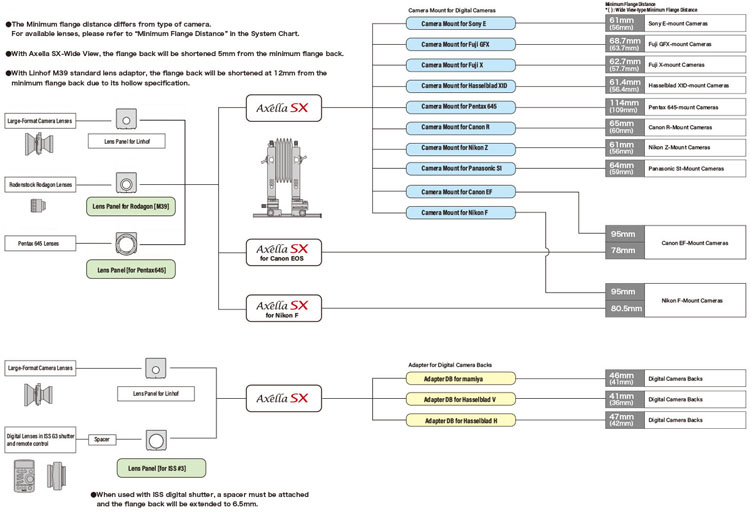

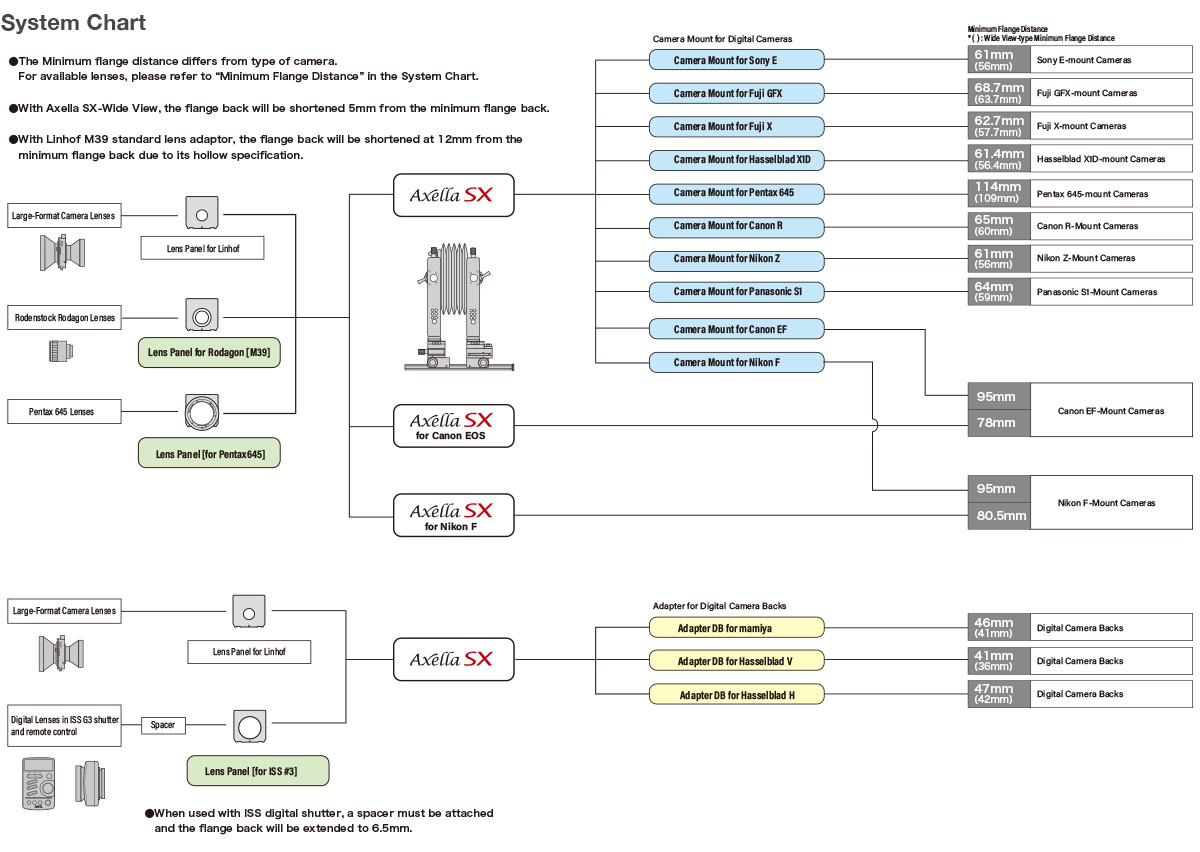

Axella SX System Chart

Technical data

Type Monorail module camera
Material Aluminum
Focus adjustment By rack-and-pinion on the monorail / tremor knob
Lens mount Linhof standard panel
Movements
Rise / Fall 30mm each
Shift 30mm each
Swing ±45˚ or over
Tilt ±45˚ or over
Monorail 250mm(standard) Option: 150mm, 200mm
Base Compatible with ARCA SWISS
Size 310 (H) x 220 (W) x 250 (L) mm
Weight 2.9kg

Products

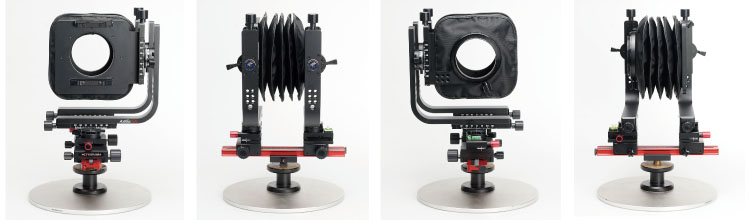

Axella SX

Product code Product name Jan
512528 Axella SX Camera Body 4962420233078
512561 Axella SX Camera Body [for Canon EOS] 4962420233108
512562 Axella SX Camera Body [for Nikon F] 4962420233115

Axella SX Camera Mount Kits

Product code Product name Jan
512563 Sony E Mount Kit 4962420233122
512564 Fuji GFX Mount Kit 4962420233139
512565 Fuji X Mount Kit 4962420233146
512566 Canon R Mount Kit 4962420233153
512567 Nikon Z Mount Kit 4962420233160
512568 Panasonic S1 Kit 4962420233177
512569 Hasselblad X1D Kit 4962420233184
512570 Pentax 645 Kit 4962420233191
512571 DB Hasselblad V Kit 4962420233207
512572 DB Hasselblad H Kit 4962420233214
512573 DB Mamiya 645 Kit 4962420233221
Attention:
Each Axella SX Camera Mount Kit dosen't include lens borad or lens mount.
Axella SX can be used with Linhof lens standard board with lens.

Camera Mounts(for Axella SX/S)

Product code Product name Jan
512390 Camera Mount for Sony E 4962420231791
512391 Camera Mount for Fuji GFX 4962420231807
512495 Camera Mount for Fuji X 4962420233054
512392 Camera Mount for Hasselblad X1D 4962420231814
512496 Camera Mount for Pentax 645 4962420233061
512393 Adapter DB for mamiya 4962420231821
512394 Adapter DB for Hasselblad V 4962420231838
512395 Adapter DB for Hasselblad H 4962420231845
512481 Camera Mount for Canon EF 4962420231906
512482 Camera Mount for Nikon F 4962420231913
512483 Camera Mount for Canon R 4962420231920
512484 Camera Mount for Nikon Z 4962420231937
512574 Camera Mount for Panasonic S1 4962420233238

Lens Panels(for Axella SX/S)

Product code Product name Jan
512397 Lens Panel for Rodagon[M39] 4962420231869
512398 Lens Panel for Pentax 645 4962420231876
510248 Lens Panel for ISS #3 4962420232552
