| [Regarding compatibility and limitations in using DSLRs] |
|
|
|
 |
|
|
|
 |
||
| Type | View Camera for Hi-end Digital Backs | |
|
||
| Material | Die-cast and machined alminium alloy | |
|
||
| Camera mount | Sliding Back with Detachable camera plate | |
|
||
| Focusing | Rack and pinion drive | |
|
||
| Lens panel | 140mm x 140mm | |
|
||
| Rise / fall | 30mm+30mm rack and pinion | |
|
||
| Lateral shift | 30mm+30mm rack and pinion | |
|
||
| Focus plane rise | 40mm | |
|
||
| Swing | 360° | |
|
||
| Center tilt | 360° | |
|
||
| Min. frange distance | 33mm (w/20mm recessed panel) | |
|
||
| Monorail | 400mm | |
|
||
| Tripod block | Rack and pinion | |
|
||
| External dimentions | 325mm(12.7")x 380mm(15")x 420mm(16.5") | |
|
||
| Weight | 4.4kg | |
|
||
|
||

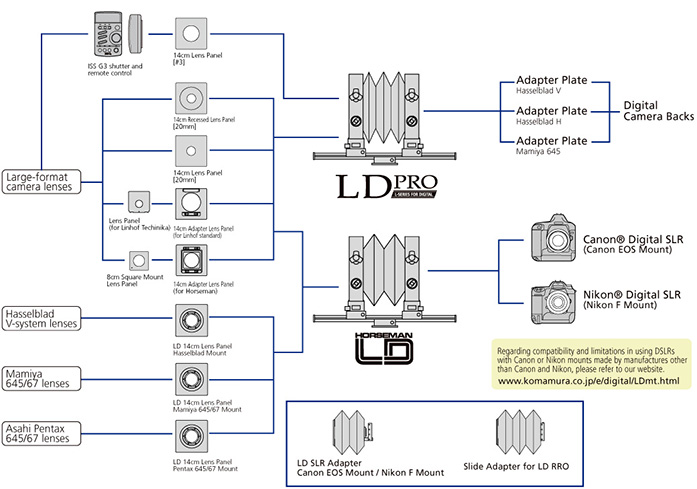

| PRODUCT CODE | PRODUCTS | |
|
|
|
|
||
| 23151 | Horseman LD PRO (w/o Adapter Plate) *Include 23602 | |
|
||
| 23602 | Slide Adapter for LD PRO (w/o Adapter Plate) | |
|
||
| 23603 | Slide Adapter for 14cm (w/o Adapter Plate) | |
|
||
|
||
| • Adapter Plates (optional accessories for 23151,23602,23603) | ||
|
||
| 23691 | Adapter Plate Hasselblad V | |
|
||
| 23692 | Adapter Plate Hasselblad H | |
|
||
| 23693 | Adapter Plate Mamiya 645 | |
|
||
|
||
| • LENS PANELS (for HORSEMAN LD PRO & LD) | ||
|
||
| 23513 | 14cm Lens Panel (cut out for #0 shutter) | |
|
||
| 23514 | 14cm Lens Panel (cut out for #1 shutter) | |
|
||
| 23515 | 14cm Lens Panel (cut out for #3 shutter) | |
|
||
| 23523 | 14cm Recessed Lens Panel [20mm] | |
|
||
| 23516 | 14cm Adapter Lens Panel (for Linhof standard) | |
|
||
| 23517 | 14cm Adapter Lens Panel (for Horseman) | |
|
||
|
||
